Servicing Your Fire Pump

A main fire pump raises water flow and pressure when the available supply cannot meet the hydrant, hose-reel, sprinkler or water-spray demand. A jockey pump maintains normal system pressure and should prevent minor leakage from repeatedly starting the main pump; it is not a substitute for the main fire pump. A complete programme combines frequent condition checks, controlled automatic-start or no-flow tests, diesel or electric driver checks, alarm verification, water-supply inspection and periodic full-flow performance tests. The full-flow test records suction pressure, discharge pressure, net pressure, flow, speed and driver data at meaningful points and compares them with the certified curve and previous results. Maintenance must investigate the cause of deterioration rather than merely adjusting pressure switches. After every test, confirm controllers are in automatic, required valves are open and secured, alarm monitoring is normal, test drains are closed correctly, fuel and water are restored, and the system is formally returned to service.

TopicFire Safety · WorkplaceUpdated2026-08-31
01
The guide

Servicing Your Fire Pump

Servicing Your Fire Pump

What needs attention

  • IS 15301:2003 is the Indian code of practice specifically covering installation and maintenance of firefighting pumps; the latest applicable edition and local adoption must be checked
  • The original post's generic NFPA schedule was incomplete because diesel and electric pumps, occupancy risks and Indian sector regulations can require different intervals
  • A no-flow or churn test proves that the pump starts and runs under one condition; it cannot demonstrate rated hydraulic performance
  • Starting a pump manually does not prove automatic pressure-actuated start, controller logic or remote alarm transmission
  • A jockey pump that starts frequently can reveal leaks, check-valve problems, pressure-setting error or loss of trapped pressure
  • Low discharge pressure can originate upstream at the water source or suction pipe, inside the pump, at the driver, or downstream through an open test or relief path
  • Net pump pressure is evaluated from discharge and suction readings; discharge pressure alone can hide water-supply changes
  • Diesel engines need a sufficiently long approved run to reach stable temperature and reveal cooling, lubrication, exhaust and battery problems
  • Electric pumps need more than motor rotation: phase condition, controller power, cable integrity, alternate supply and loaded voltage or current may be critical
  • Pump-room flooding, blocked ventilation, heat, corrosion, poor drainage and storage can cause common-mode failure of otherwise serviceable equipment
  • Annual performance should be trended against the original certified curve and previous results, not judged only by whether water appeared
  • Test instruments and flow meters must be suitable and calibrated; inaccurate gauges can create false failure or false confidence
  • Closing or throttling the wrong valve, running without adequate suction, uncontrolled hose discharge and exposed rotating equipment can injure testers and damage the system
  • The last restoration check is a high-risk step because a successful test can still leave the building unprotected if a valve remains closed or a controller remains manual

Controls that reduce risk

  1. Mount the current pump schematic, certified curve, pressure settings and operating instructions in the pump room
  2. Create one asset record for each main, standby and jockey pump, driver, controller and water source
  3. Confirm every required suction, discharge and bypass valve is open, secured and clearly identified
  4. Trend jockey-pump starts and investigate abnormal cycling
  5. Record actual automatic-start pressures instead of writing only pass or fail
  6. Log suction and discharge pressure, speed, vibration, temperature and diesel or electrical observations during each run
  7. Test required local and remote alarms through to their receiving point
  8. Schedule full-flow testing with calibrated instruments and safe water discharge
  9. Compare each performance curve with acceptance and previous results and investigate deterioration
  10. Maintain diesel fuel quality, batteries, charger, cooling, lubrication, belts, hoses, exhaust and ventilation
  11. Maintain electric controller power, phase supervision, connections, motor condition and alternate supply where provided
  12. Keep tanks full, refill arrangements working, suction paths clear and pump rooms drained and accessible
  13. Use a formal impairment permit with notifications, temporary precautions, repair priority and restoration sign-off
  14. After any repair, repeat the failed function and any affected performance tests
  15. Audit the final valve, controller, alarm, tank and fuel restoration steps independently

Understand and apply the guidance

When it comes to taking care of your building, inspections and service for your fire protection systems may be the last thing on your mind. When you have a lot of other things to do, it can be easy to forget that your fire pump needs to be checked and serviced. But your fire pump needs to be checked regularly to make sure it will work correctly if there is a fire.

What is a Fire Pump?

A fire pump is an important part of your system to protect against fire. Fire sprinklers need water to flow through the pipes so that the water can get to the fire and put it out. The water pressure has to be high enough for water to flow. Fire pumps force water out at a high pressure so that your sprinkler system can fight a fire well. Most of the time, the fire pump is hooked up to a water supply and is run by electricity, diesel, or steam.

Fire Pump Inspections & Service

Depending on what kind of fire pump you have, you may need to check it once a week, once a month, or once a year. NFPA 25 says that fire pumps need to be inspected and tested, and you should get the help of a fire protection professional to make sure that your fire pump is working at its best.

  • Weekly:- Your fire pump should be checked once a week by looking at its parts, such as the valves, gauge readings, fuel and oil levels, electrical systems, ventilation, and heating. The pump is checked visually once a week to make sure it looks like it is working right and hasn’t been damaged.
  • Monthly:- As part of the monthly checks, the pump is often tested when there is no flow. During a no-flow test, the pump is turned on to make sure it works without pumping any water through it.
  • Annual:- A flow test is part of the annual inspection and testing of a fire pump. This test makes sure the pump is working as it should.

Fire Pump Repairs

If you notice problems with your fire pump or think it needs to be fixed, you should call a professional in fire protection as soon as possible. Fixing any problems with your system is important to make sure the pump is ready to go in case of a fire.

Common unsafe practices

  • Treating a fire pump like a domestic booster pump
  • Using one universal test frequency without checking Indian, local, insurer, manufacturer and sector-specific requirements
  • Running the pump manually and recording it as an automatic-start test
  • Calling a no-flow churn test an annual performance test
  • Reading only discharge pressure and not suction, flow, speed and driver measurements
  • Testing through an uncalibrated meter or damaged gauges
  • Running a pump dry, against an unsafe closed condition or without required minimum circulation and cooling
  • Allowing unsecured hoses, uncontrolled test water or water hammer
  • Ignoring frequent jockey-pump cycling or changing pressure settings to hide leakage
  • Resetting overloads, engine alarms or controller faults repeatedly without root-cause investigation
  • Leaving diesel fuel low, batteries weak, charger failed or cooling-water strainers obstructed
  • Using the pump room for storage or blocking controller, valve and maintenance access
  • Servicing one pump without declaring and managing the protection impairment
  • Failing to notify alarm monitoring before testing, causing false response or disabled signals that are never restored
  • Finishing the test with a suction or discharge valve closed, controller in manual, alarm bypassed or tank not refilled
02
Watch & learn

Related Videos

Captions
Operational walkthrough

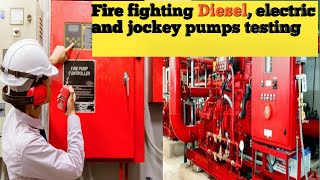

Fire Fighting Pumps Testing and Operation: Diesel, Electric and Jockey Pump

Manoj in Europa · Hindi · Verified

Verified with YouTube oEmbed; follow the site's approved procedure and qualified supervision

03
Facts & action

Evidence, Cases & Next Steps

112India emergency numberCall for an actual fire or life-threatening emergency
3Core full-flow data pointsChurn, rated flow and maximum test flow where required by the approved procedure
2Pressures needed to evaluate pump net pressureDischarge and suction
Empty tank, closed valve, blockage or air entry can defeat every downstream componentWater source and suction
A healthy pump that does not start automatically is not readyAutomatic start and controller
Only a controlled flow test demonstrates capacity and pressureFull-flow hydraulic performance
Fuel, batteries, cooling and exhaust create multiple hidden failure modesDiesel driver readiness
Power, phase, controller, motor and alternate source must be available under emergency conditionsElectric driver readiness
Maintains pressure and reveals leakage or setting problemsJockey-pump behaviour
Enables prompt response to pump running, power loss and troubleAlarms and monitoring
Wrong final position can nullify a successful testValves and restoration
Flood, heat, corrosion, storage and poor access cause common-mode failurePump-room environment
Numerical history exposes gradual deterioration before demandRecords and performance trend

What the evidence supports

  • Main fire pump | Supplies the design firefighting flow and pressure when system demand lowers pressure
  • Standby pump | Provides approved redundancy; independence of driver, power or fuel and suction arrangements must match the design
  • Jockey pump | Maintains pressure for small losses; frequent cycling is a leakage or setting warning, not normal readiness proof
  • Automatic start | Main pump must start at its approved pressure setting without relying on a person reaching the room
  • No-flow test | Confirms start and basic running condition but does not prove rated flow or available suction
  • Full-flow test | Measures performance and water supply under controlled discharge and compares results with the original curve and history
  • Three useful flow points | Churn or no-flow, rated flow and maximum test flow where the approved method requires and the system can safely deliver it
  • Diesel checks | Fuel, oil, coolant, batteries, charger, belts, hoses, cooling water, exhaust, ventilation, speed and engine alarms
  • Electric checks | Power availability, phase condition, controller, motor, transfer or alternate supply where provided, voltage, current and alarms
  • Water source | Tank level, refill, suction valves, strainers, air leaks, vortex risk and reliable test-water disposal all affect performance
  • Pump-room condition | Access, drainage, lighting, ventilation, temperature, housekeeping, flooding and unauthorised storage can disable the installation
  • Restoration | Controllers on automatic, valves open, alarms normal and defects closed are part of the test—not optional paperwork

Immediate prevention actions

  1. Check the pump-room door, access, drainage, lighting, ventilation and storage
  2. Verify fire-water tank level and the normal position of every suction and discharge valve
  3. Confirm main and standby controllers show automatic with no unresolved trouble
  4. Review diesel fuel, batteries and charger or electric power and phase indications
  5. Look for leakage, corrosion, abnormal jockey cycling and missing coupling guards
  6. Find the latest automatic-start and full-flow records and compare actual readings with earlier tests
  7. Confirm required pump-running and trouble signals reach the fire control or monitoring point
  8. Open work orders for every defect and declare impaired protection where applicable
  9. Post the approved test and restoration checklist in the room
  10. Arrange a qualified full-flow test if numerical performance evidence is overdue or missing

Emergency survival steps

  1. For an actual fire, raise the alarm, evacuate and call 112; do not enter the pump room through smoke or fire
  2. Trained staff may confirm pump operation or use approved manual start only from a safe, accessible location and under the emergency plan
  3. Never stop a running fire pump during a fire merely because pressure, vibration, leakage or noise appears unusual; the incident commander or authorised emergency procedure controls that decision
  4. Do not close suction or discharge valves during fire demand
  5. Keep clear of rotating couplings, hot exhaust, pressurised leaks, batteries, fuel and live electrical panels
  6. Do not stand in front of hose outlets or test headers and never attempt an unplanned flow test during an emergency
  7. Tell responders which pumps are running, which are impaired, tank level, valve status, fuel condition and any electrical or mechanical hazard
  8. If the pump fails, notify the fire service and incident command immediately; use approved alternate water supply or fire-service connection only under trained control
  9. During maintenance, isolate energy and pressure using the approved lockout and impairment procedure
  10. After an accidental start or test, do not assume readiness until valves, controller, alarms, water and fuel are checked and signed back into service
  11. Preserve logs and controller events after a fire or failure for root-cause investigation
  12. Do not return a repaired pump to sole protection duty until the affected function and performance are verified

Limitations

  • This record cannot set a universal frequency for every building, petroleum facility, hospital, factory or listed pump
  • The one-page BIS preview confirms scope but not the full copyrighted requirements; the complete current standard must be obtained for implementation
  • PNGRB intervals apply to the petroleum installations within that regulation, not all buildings
  • CPWD guidance is a public-works specification and may not govern a private property
  • Exact start pressures, run duration, flow points, acceptance tolerances and maintenance parts are design- and manufacturer-specific
  • A video cannot qualify a person to operate live electrical, diesel, pressurised-water or rotating equipment
  • The chart scores show safety criticality, not failure probability
  • The exported featured image belongs to another post and must be replaced before publication
